Squeegee Blades

3 | Drop out the squeegee bar.

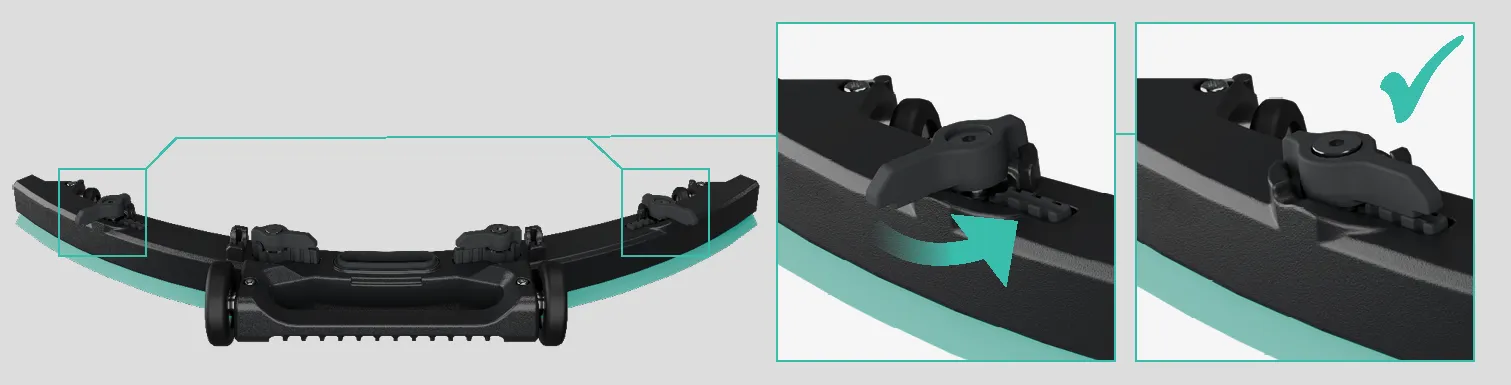

4 | Place the squeegee bar on a flat surface and twist the two remaining twist locks.

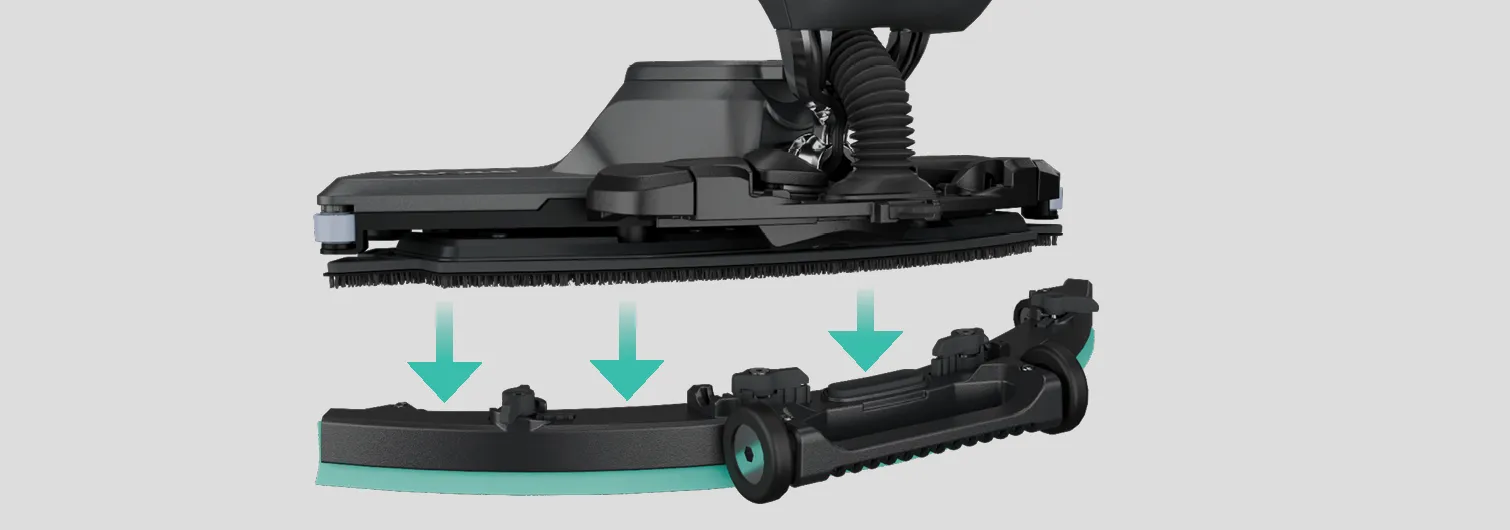

5 | Gently pull the squeegee away from the retaining hooks.

6 | The bracket is now accessible for cleaning or replacing the squeegees.

7 | Ensure the squeegee is hooked on evenly on each hook before reinstalling.

To reinstall the squeegee: Reverse these steps in order to reinstall the squeegee back in place.
IMPORTANT: To avoid leakage, ensure the suction hose is seated correctly during re-installation.
